Carbon fiber composite materials

No.	Device Name	Index	Use
1	Electronic universal testing machine	Maximum tension: 2000KN Compression spacing: 1000mm Pillar spacing: 700mm Piston stroke: 250mm Sample diameter: 70mm	Mechanical properties of stretching, bending, compressive strength test

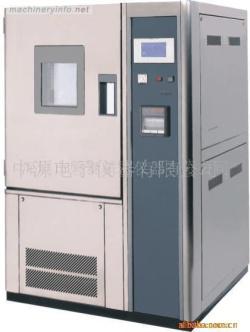

2	Heat aging box	Temperature: -70 ~ 150 ℃ Humidity: 20% ~ 98% RH	High and low temperature heat aging performance test
3	UV aging box	Temperature: 10 ~ 70 ℃ Humidity: 95% RH UV wavelengths: 280nm ~ 400nm Irradiance range: <50w / m	UV aging tests

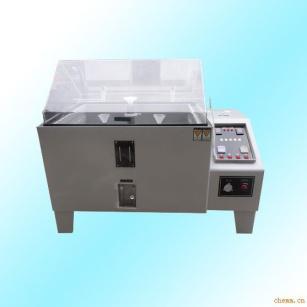

4	Salt spray aging test machine	Test temperature: <63 ℃ Spray volume: 1-2ml / 80cm2 / h Humidity: ≥85% RH Capacity: 108L Salt bucket capacity: 15L	Anti-aging properties of salt spray corrosion test
5	High temperature chamber	Maximum temperature: 500 ℃ Within the box size: 500 × 500 × 600mm Temperature accuracy: ± 1.0 ℃ Distribution uniformity: ± 2.5%	High Temperature Performance Test

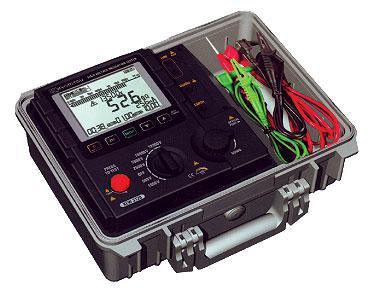

6	Resistance Tester	Resistance: 103-1012 Ohm Relative humidity: 10-90% RH Temperature: 0-37.8 ℃	Resistance Test

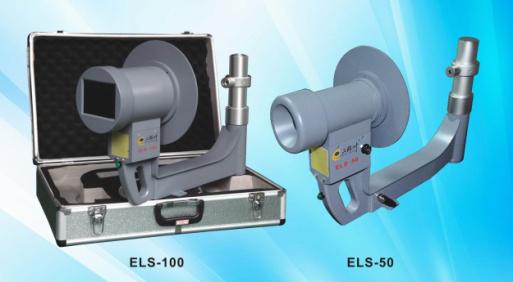

7	X-ray nondestructive testing	Field: 100mm Resolution: 36Ip / cm; Tube voltage: 60-75kv Contrast: 5%	NDT

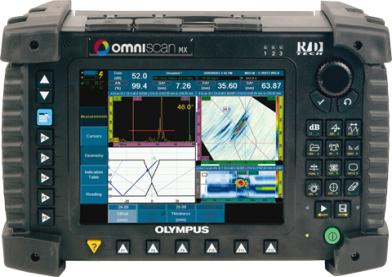

8	Ultrasonic flaw detector	Detection range: 0.1-8000mm Velocity range: 1 ~ 99999m / s Operating frequency: 0.1-40MHz Pulse shift: 0 ~ 3000mm	NDT
9	Rockwell hardness	Digital Preliminary test force: 10Kg Test Force: 60kg Holding Time: 0-60S Specimen height: 170mm	Hardness Testing

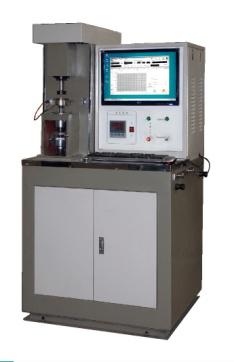

10	Universal friction and wear tester	Test force: 10-1000N The maximum frictional torque: 2.5Nm Spindle speed: 2000r / min Sample temperature: 260 ℃	Friction and wear properties

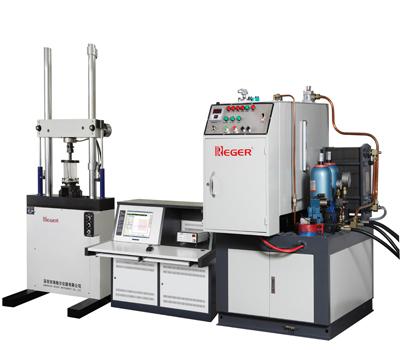

11	Electro-hydraulic servo fatigue testing machine	Maximum load: ± 1000KN Test frequency: 0.01-50HZ Test waveforms: sine, triangle, square, ramp, trapezoidal wave Actuator piston stroke: ± 75mm Stretching space: 900mm	Dynamic and static mechanical properties

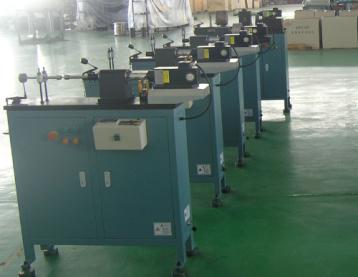

12	Rotating bending fatigue testing machine	Runout: ≤0.01mm Load running runout: ≤0.05mm	Bending fatigue test
13	High-frequency fatigue testing machine	Maximum load: 500KN The maximum dynamic amplitude: ± 250KN Test frequency: 50-250HZ Experimental Space: 600 × 600mm	Fatigue characteristics of the sample under tension and compression and alternating flowers and the sine wave
14	Electronic high-temperature creep rupture strength testing machine	Maximum load: 100KN Test force range: 0.4-100% FS Temperature: 200-1000 ℃ All tropical long: ≥150mm	High temperature creep relaxation tests
15	Drop hammer impact test machine	Maximum impact energy: 30000J Main hammer Weight: 590 kg Impact Height: 2.8m Impact speed: 7.4m / s Hammer Blade hardness: HRC58-62 Anvil hardness: HRC58-62	Impact Performance Test

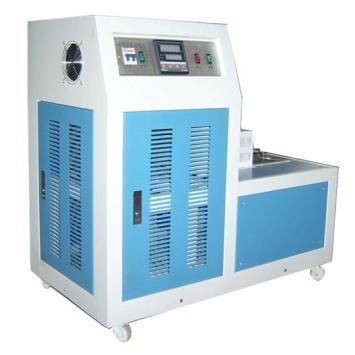

16	Low temperature impact test instrument	Temperature range: 30 ~ -60 ℃ Workspace: 120 × 120 × 70mm Cooling rate: 1 ℃ / min

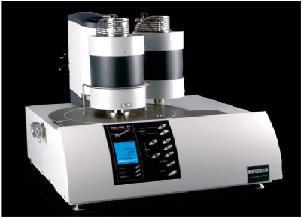

17	Thermal Mechanical Analyzer	temperature range: -170 ℃ ~ 600 ℃ Heating rate: 0.01 ~ 20 K / min Frequency Range: 0.01 ~ 100 Hz The most vigorously range: 24N	Thermo-mechanical properties of materials

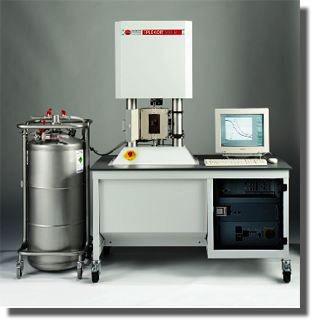

18	Dynamic Mechanical Analyzer	Frequency Range: 0.01-100 Hz Amplitude range: ± 0.1 up-240 μm temperature range: -170 ~ 600 ℃ Heating rate: 0.01-20 K / min	Tg test material
19	Laser thermal conductivity meter	temperature range: RT ~ 300 ℃ Thermal diffusivity measuring range: 0.01 ~ 1000mm2 / s Thermal conductivity measurement range: 0.1 ~ 2000 W / mK	Thermal diffusivity, thermal conductivity measurement
20	Dilatometer	temperature range: RT ~ 1000 ℃ Heating rate: 0 ~ 50K / s The maximum sample length: 50mm Maximum sample thickness: 12mm	Linear expansion coefficient measurement
21	Differential Scanning Calorimetry	temperature range: -170 ~ + 600 ℃ Heating rate range: 0-100 K / min	Thermal performance
22	TGA	Resolution: 0.1 g Ambience: Static, dynamic, vacuum Temperature range: 20-1100 ℃ Heating rate: 0.001-200K / min	Thermal performance
23	Microscopic infrared absorption spectrometer	MCT single point detector: ≥7800-600cm-11 DTGS single point detector: ≥7600-450cm-11 Spatial resolution: <10μm Under ATR mode ≤3μm	Particle and fiber analysis
24	Rotary flow analyzer	Frequency Range: 10-5 Hz - 100 Hz Maximum speed: 1500 rpm Maximum torque: 200 mNm Temperature range: -100 ℃	Rheological performance analysis

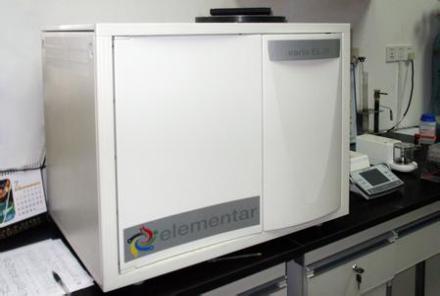

25	Elemental analyzer	Measuring range： C：0.03~20mg； H：0.03~3mg； N：0.03~2mg； S：0.03~6mg； O：0.03~2mg	Content measurement sample CHNSO

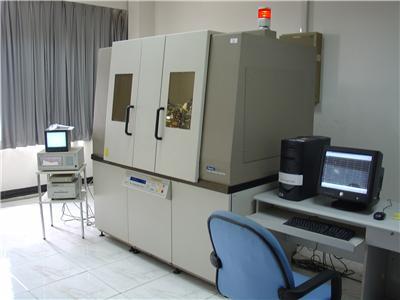

26	Liquid X-ray diffractometer	High voltage stability: 0.005% Rotatably: θ / θ mode and 2θ mode	Microscopic observation

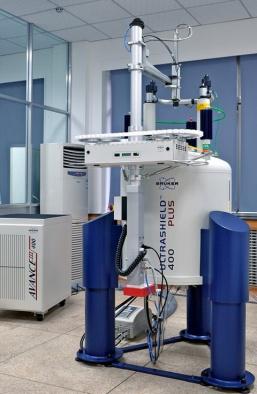

27	Nuclear magnetic resonance spectrometer	Time resolution: 12.5ns Minimum Event Time: 25ns Highest phase resolution: 0.0055 ° The highest frequency resolution: 0.005 Hz H SNR: ≧ 300	Structural analysis of organic compounds

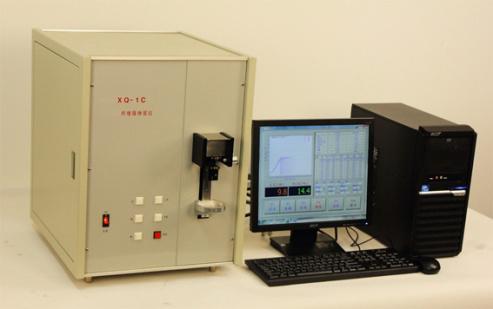

28	Fiber tensile tester	Load Range: 0 ~ 200 cN Load measurement resolution: 0.01 cN Elongation measuring range: 100mm; Extension Resolution: 0.1%	Fiber strength, elongation test
